PDU

Power Distribution Units

Facemate Power Distribution Units for cabinets are available in different configurations, power levels and features. The offer includes the top-end Per-Port switched and monitored models down to basic 19″ PDUs.
Compare different models

Per-Port Switched

Remote switching of individual ports and monitoring of overall PDU
more…

IP Monitored

Remote monitoring of overall PDU
more…

Local metered.
Parameters are displayed in LCD panel
more…

Reliable power distribution with 19″ and vertical models
more…

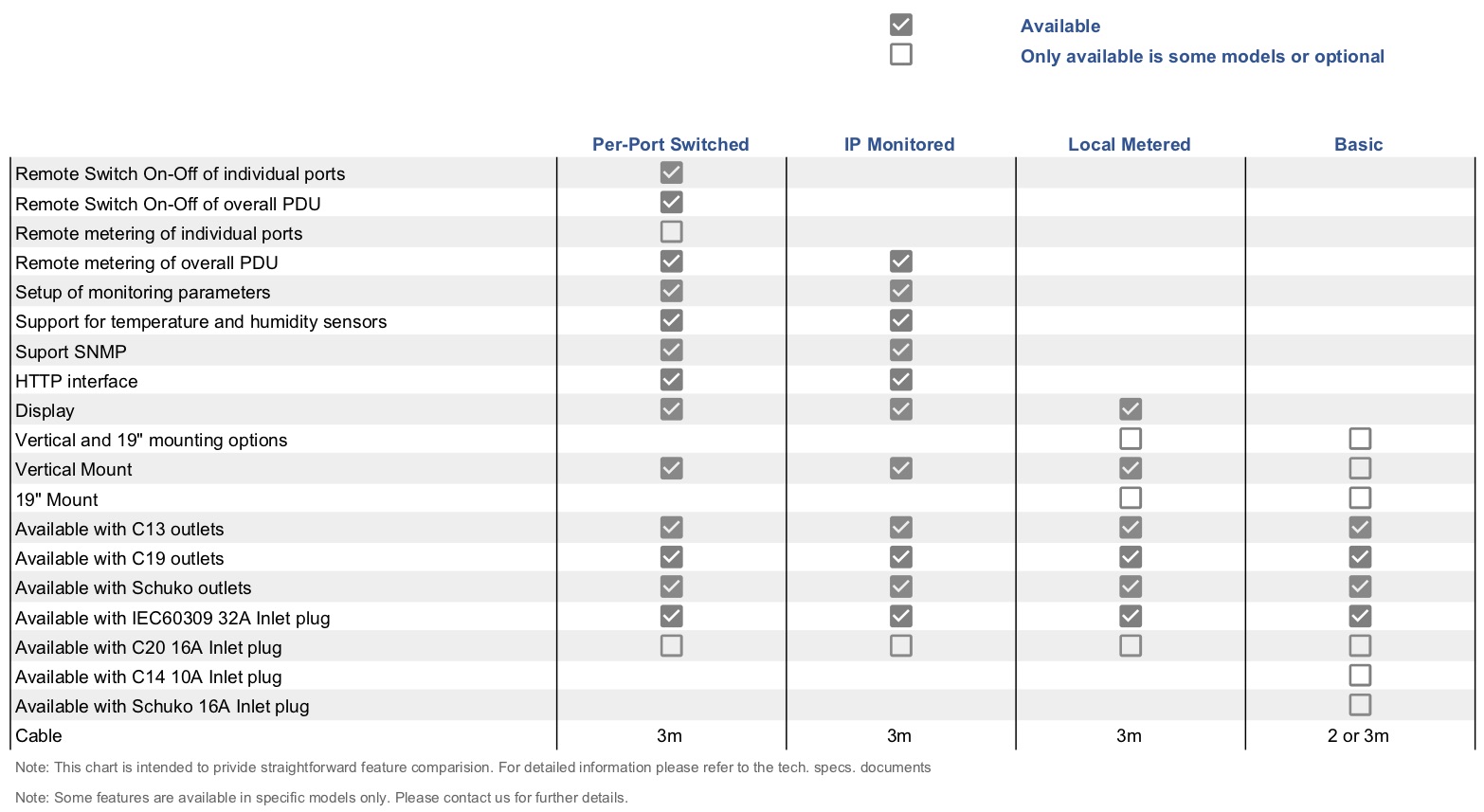

PDU Comparison Guide

Expand

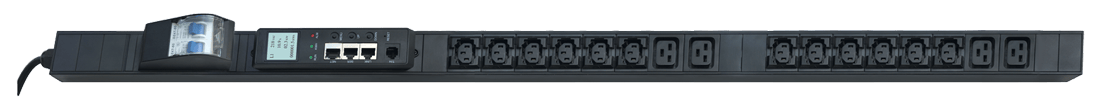

Per-Port Switched PDU

Remote switching of individual ports and monitoring of overall PDU

Tech Specs.

  • 45120-MS13-1402 Per Port Switched PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 14×C13＋2×C19
  • 45120-MS13-2004 Per Port Switched PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 20×C13＋4×C19
  • 45120-MS13-1806 Per Port Switched PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 18×C13＋6×C19
  • 45120-MS13-3606 Per Port Switched PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 36×C13＋6×C19

IP Monitored PDU

Remote monitoring of overall PDU

User Manual

Tech Specs.

  • 45121-MO13-1802 Monitored PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 18×C13＋2×C19
  • 45121-MO13-2004 Monitored PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 20×C13＋4×C19
  • 45121-MO13-1806 Monitored PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 18×C13＋6×C19
  • 45121-MO13-3606 Monitored PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 36×C13＋6×C19
  • 45121-MO13-160416 Monitored PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 16×C13＋4×C19+16xSchuko

Metered PDU

Local metered – Readings are displayed in the LCD panel

  • 45122-MB12-1204 Basic Metered PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 12×C13＋4×C19
  • 45122-MB12-2004 Basic Metered PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 20×C13＋4×C19

Basic PDU

Reliable power distribution with 19″ and vertical models

19″ models with 2m cable
  • 40023 Régua de Energia 6 Schuko 1U
  • 40026 Régua de Energia 6 Schuko c/ Interruptor 1U –datasheet
  • 40027 Régua de Energia 6 Schuko c/ Disjuntor Bipolar 1U
  • 40028 Régua de Energia 8 Schuko c/ Interruptor 1U

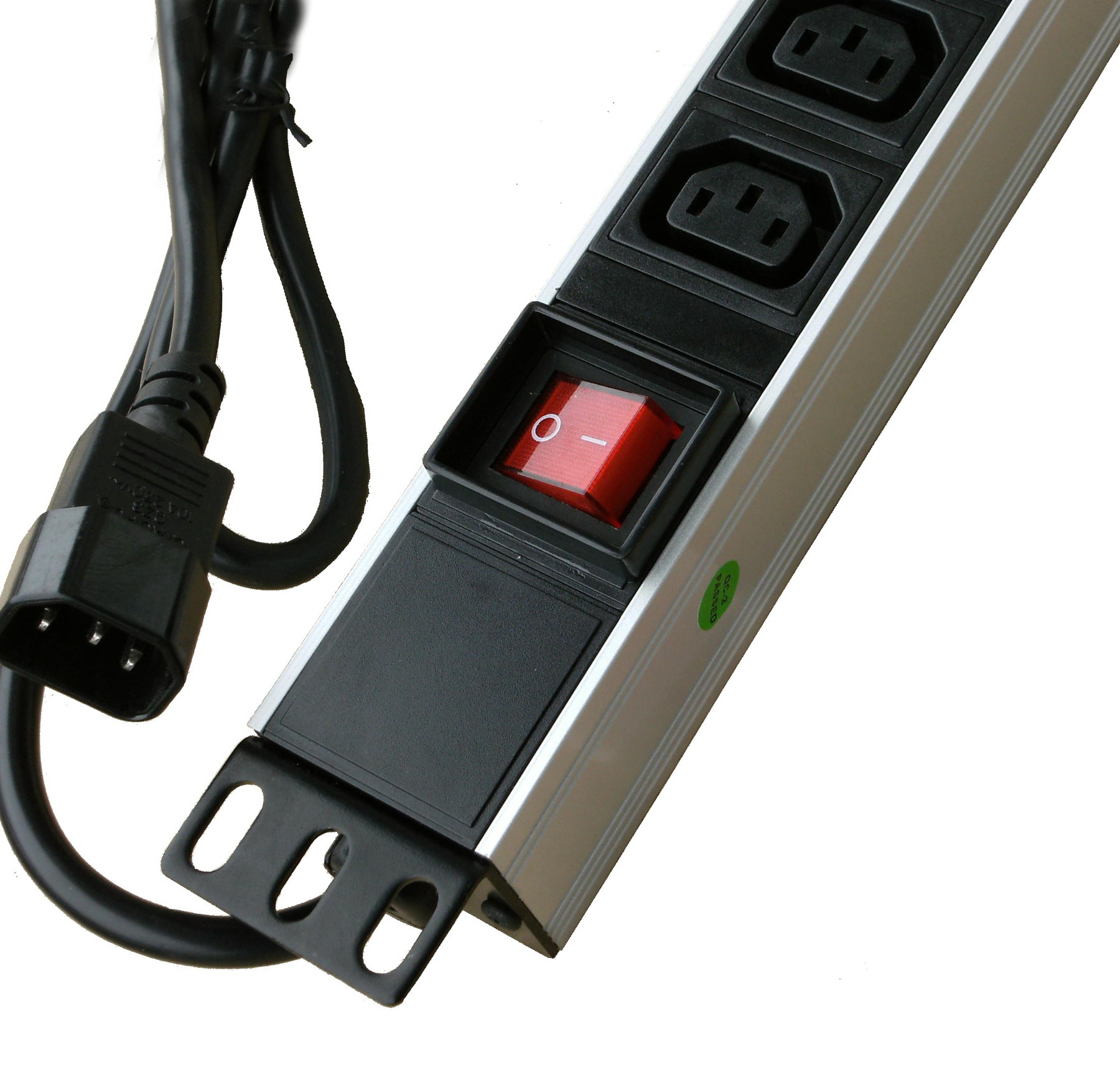

  • 40029 Régua de Energia 9 IEC C13 c/ Interruptor 1U Entrada IEC C14
Vertical PDU with 3m cable
  • 45121-BB13-1806 Basic PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 18×C13＋6×C19
  • 45121-BB13-2004 Basic PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 20×C13＋4×C19
  • 45121-BB13-0808 Basic PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 8×C13＋8×C19
  • 45121-BB13-160416 Basic PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 16×C13＋4×C19  + 16xSchuko
  • 45121-BB13-160018 Basic PDU – Zero U – Input: 1 Fase 32A / IEC 60309 – Output: 16×C13＋18×Schuko
